Lock control units

Every Lock electric actuator EWA is equipped with a Lock control unit that can be used to precisely adjust the start and end points, i.e. the end positions of a movement. It is impossible to overrun these end positions, preventing massive damage to the application and even destruction.

Each Lock control unit can optionally be equipped with a position indicator. This measures the distance traveled between the start and end points and reports this to a control system. Precise positioning within the travel distance is possible, as is reaching the start and end points exactly, even over hundreds of cycles.

In order to live up to our claim of offering the right solution for every application and every environment, we differentiate between mechatronic (LSC) and mechanical (END) control units.

Lock Control Unit 24 V DC LSC 40

LSC 24V DC

Lock Control Unit LSC 40

LSC 1~AC

Lockdrives LSC pre-wired

LSC 1~AC pre-wired

Lock Control Unit END 20.20

END 20

Lock Control Unit END 20.40

END 20 mit PAR

Logo Warranty

Lock Warranty

Control unit LSC - currentless absolute

Lock has been setting standards since 2019 with the LSC currentless absolute control unit, completely redefining the adjustment of end positions and travel measurement. Currentless absolute makes it possible to adjust the end positions without a power connection. This creates an assembly advantage, as both the assembly and the adjustment of the end positions can be carried out in a single operation.

In addition, this feature ensures that the control unit does not lose the adjustment of the end positions when the operator is moved without power. Instead, the control unit recognizes the exact current position after the power returns. Damage caused by overrunning the end positions is impossible and a reference run is unnecessary. This saves time and money during maintenance or repairs to the drive train.

2-click installation

The end positions are adjusted using the patented Lock 2-click Installation®: To set the start and end points, simply press two setting switches simultaneously. Simple setting of the end positions avoids errors and saves time when training personnel.

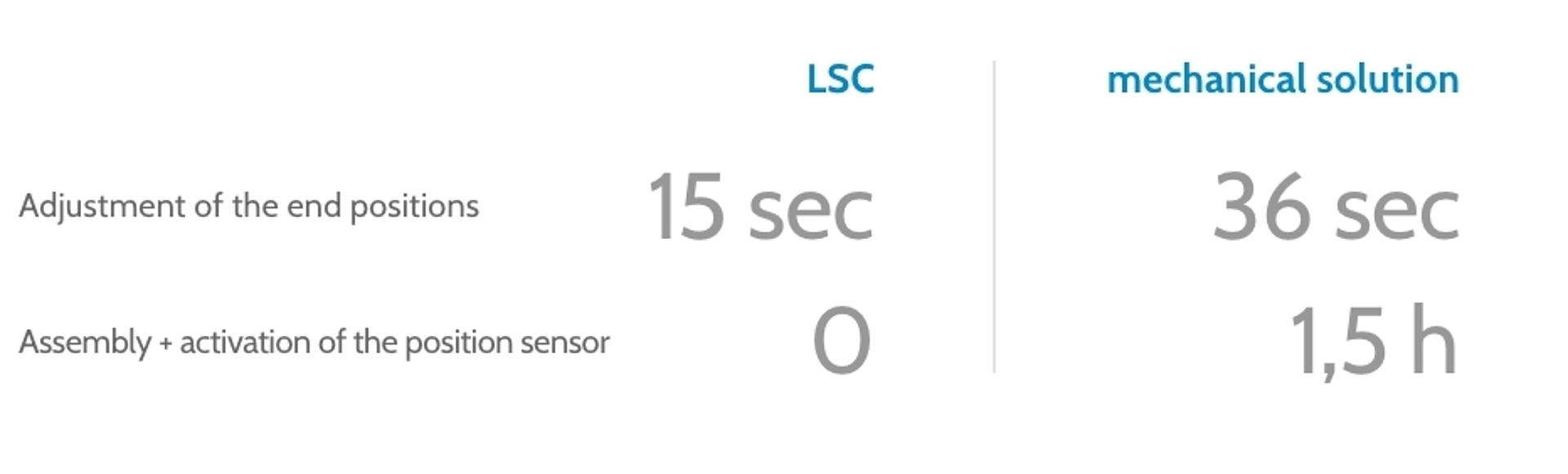

At the same time, the 2-click installation activates the travel measurement, which can then optionally be reported to a control system. Setting the end positions and activating the travel measurement in a single operation means a time saving of 90 minutes per operator compared to mechanical solutions.

Control unit END

With the END mechanical control unit, the start and end points of a movement, the end positions, can be easily adjusted. Adjustment is carried out by fixing grub screws in the END. This is possible without electricity and ensures a simple installation process.

An optional additional safety switch integrated in the END control unit ensures that the end positions are not overrun even if the position has been changed manually. This is the case during maintenance. When the system is restarted after maintenance or repairs to the drive train, readjustment is therefore necessary.

With the PAR position indicator, the END control unit becomes a position indicator. The PAR also adjusts the start and end points of the movement. When connected to a control system, the exact distance traveled and therefore the exact position is reported back.
